Hastelloy C22 Ball Valve

Home > Hastelloy > Hastelloy C22 Ball Valve

A Hastelloy C22 Ball Valve is a top-notch flow control device crafted to ensure reliable shutoff and regulation of fluids in tough, corrosive environments. Made from Hastelloy C22, which is a blend of nickel, chromium, molybdenum, and tungsten, these valves boast impressive resistance to both oxidizing and reducing agents, making them perfect for handling aggressive chemicals and extreme conditions. With a straightforward quarter-turn operation, the expertly designed ball guarantees smooth flow, a tight seal, and minimal pressure drop. These valves are commonly found in critical applications where long-lasting durability, leak-proof performance, and resistance to chemical attack are a must.

Hastelloy Alloy 3 Way C22 Ball Valve in Kuala lumpur, Malaysia, Hastelloy 4 Way C22 Ball Valve Price in Malaysia, UNS N06022 Hastelloy 5 Way C22 Ball Valve Supplier in George town, Hastelloy High Pressure C22 Ball Valve Price List in Kuala lumpur, Hastelloy Instrumentation C22 Ball Valve Manufacturer in Kuala lumpur, DIN 2.4602 Hastelloy Alloy Compression C22 Ball Valve in Ipoh, Hastelloy Hydraulic C22 Ball Valve Supplier in George town, Hastelloy High Pressure C22 Ball Valve Price List in Kuala lumpur, Hastelloy 2 Way C22 Ball Valve Price in Ipoh

The makeup of Hastelloy C22 ball valves includes nickel, chromium, molybdenum, and tungsten, providing exceptional protection against pitting, crevice corrosion, and stress corrosion cracking. The versatility of this alloy offers defense against both oxidizing and reducing media, making it a superior choice compared to many traditional materials in the chemical processing sector. The robust design of the ball valve, paired with its excellent mechanical strength, allows it to endure high pressures and temperatures while ensuring dependable operation. Precision seating and smooth actuation further boost performance and longevity in challenging environments.

Hastelloy C22 Ball Valve Specifications

STANDARD	ASTM A494 / ASME SA494 API 600/BS1414, ASME B 16.34, ASME B 16.10, ASME B 16.5, API 598/BS EN 12266-1,ASME B 16.25
VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Hastelloy C22 Ball Valve Chemical Composition

Hastelloy C22	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C22	Balance	0.010 max	12.5 – 14.5	0.50 max	0.08 max	2 – 6	0.02 max	0.02 max	2.5 max	20 – 22.5

Hastelloy C22 Ball Valve Mechanical Properties

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.69 g/cm3	1399 °C (2550 °F)	Psi – 45000 , MPa – 310	Psi – 1,00,000 , MPa – 690	45 %

Hastelloy C22 Ball Valve Equivalent

STANDARD	UNS	WNR Material Number	AFNOR	EN	JIS	BS	GOST
Hastelloy C22	N06022	2.4602	–	NiCr21Mo14W	NW 6022	–	–

Top Hastelloy C22 Ball Valve Manufacturing Company in Kuala lumpur

At Nadia Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hastelloy C22 Ball Valve in Kuala lumpur, Malaysia. Our advanced manufacturing facilities, strategically positioned in the Malaysia, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Hastelloy C22 Ball Valve

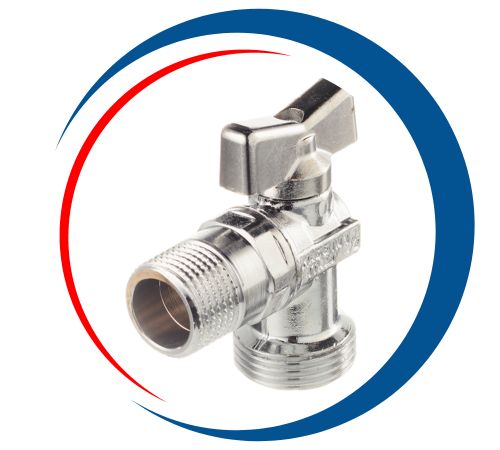

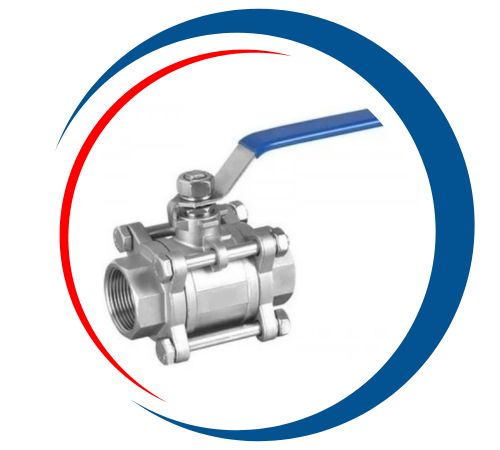

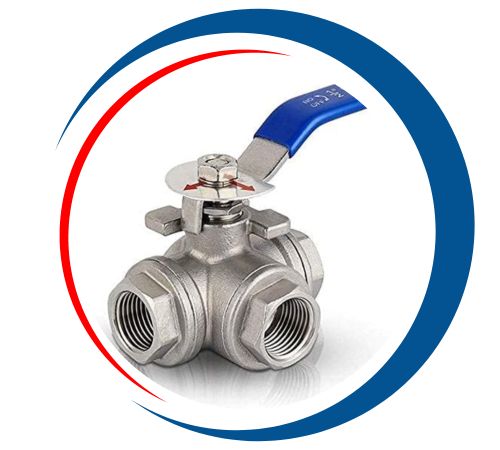

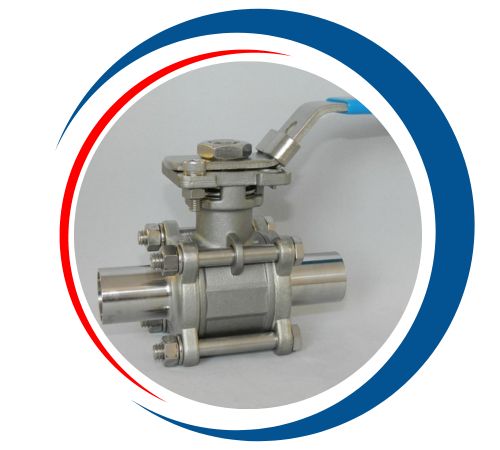

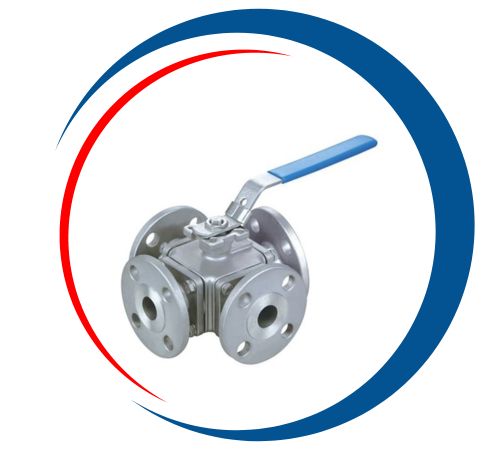

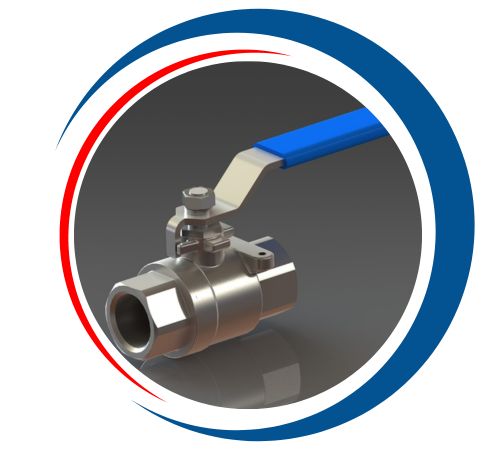

Hastelloy Alloy 2 Way C22 Ball Valve Supplier in George town, Hastelloy 3 Way C22 Ball Valve in Kuala lumpur, Malaysia, Hastelloy Alloy 3 Way C22 Ball Valve Price List in Kuala lumpur, UNS N06022 Hastelloy 5 Way C22 Ball Valve Price in Ipoh, Hastelloy Instrumentation C22 Ball Valve Price in Malaysia, DIN 2.4602 Hastelloy Compression C22 Ball Valve Supplier in George town, Hastelloy Hydraulic C22 Ball Valve Manufacturer in Kuala lumpur, Hastelloy Alloy High Pressure C22 Ball Valve in Ipoh

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Hastelloy C22 Ball Valve in Kuala lumpur, Malaysia

Nadia Tube Fittings is a leading supplier and stockist of premium Hastelloy C22 Ball Valve in Kuala lumpur, Malaysia. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hastelloy C22 Ball Valve Uses

Hastelloy C22 ball valves are extensively utilized in industries like chemical processing, pharmaceuticals, marine, pulp and paper, power generation, and wastewater treatment. They shine in systems dealing with hydrochloric acid, sulfuric acid, acetic acid, ferric chlorides, and seawater, where standard valves often fall short. By delivering secure shutoff and efficient flow control, these valves safeguard pipelines and equipment while upholding system safety and efficiency. Their outstanding corrosion resistance, long-lasting durability, and reliable operation make Hastelloy C22 ball valves a go-to solution for industries that demand the highest performance standards.
