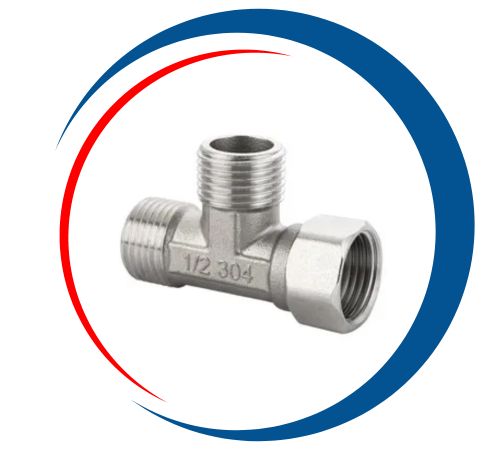

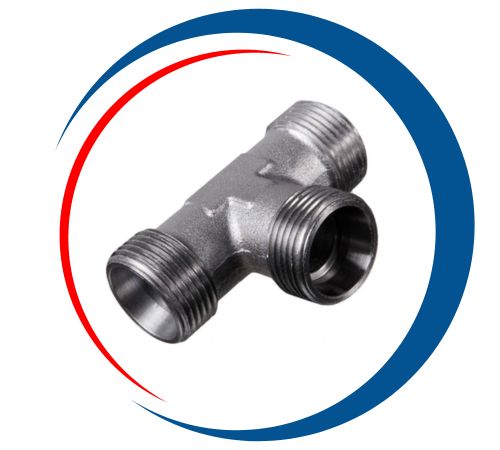

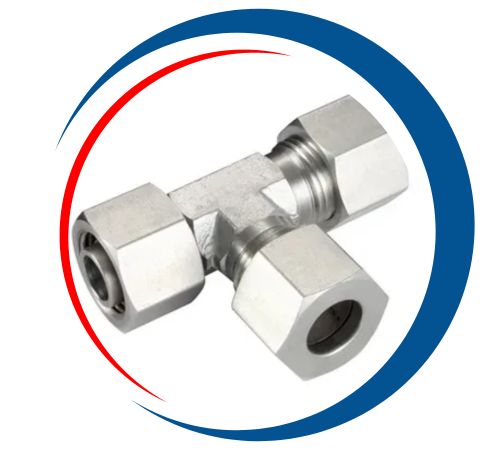

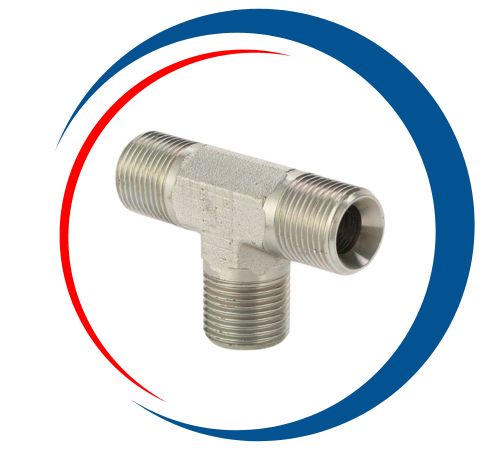

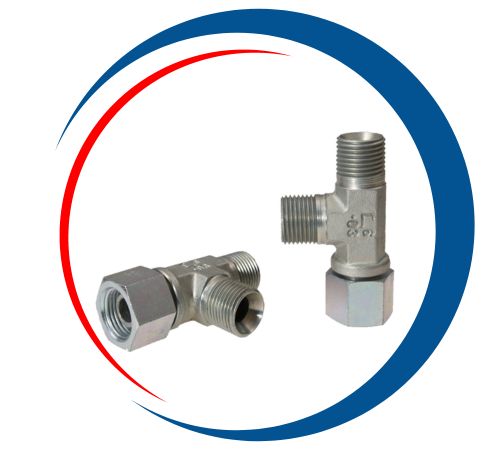

A Hydraulic Equal Tee is a nifty three-way fitting that connects three hydraulic lines of the same size at right angles. This clever design allows for the smooth distribution or combination of hydraulic fluid in pressurized systems. Built tough, these fittings ensure leak-proof and secure connections, which helps maintain efficient fluid flow and system integrity, even under high pressure. Hydraulic equal tees are key players in complex hydraulic circuits, providing uniform flow distribution and reducing turbulence. You’ll find them in all sorts of applications, from industrial machinery to mobile equipment, where reliability, durability, and safety are a must.
Typically made from materials like carbon steel, stainless steel, or alloy steel, these fittings boast excellent mechanical strength and corrosion resistance, making them perfect for demanding hydraulic environments. Thanks to precision machining, they feature smooth internal surfaces and tight tolerances, ensuring leak-proof connections with compatible tubing or fittings. Hydraulic equal tees come with various end types—threaded, welded, or compression—to fit different hydraulic piping standards. Their sturdy design allows them to handle high pressure, vibration, and temperature changes, guaranteeing dependable long-term performance in critical systems.
| STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 |
| SERIES | LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| CONNECTIONS | TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE |
| WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL | |
| BODY TYPE | FORGED, BAR STOCK |
| SURFACE | CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED, |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH | |
| TEMPERATURE | STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C) |
| EQUIVALENT BRANDS | PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS |
| APPLICATIONS & INDUSTRIES | CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT |
At Nadia Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Equal Tee in Kuala lumpur, Malaysia. Our advanced manufacturing facilities, strategically positioned in the Malaysia, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.
| Thread | CH | L1 | L2 | T | Pressure PN | Weight kg 100pcs | Series |
|---|---|---|---|---|---|---|---|
| Thread F1 | mm | mm | mm | mm | bar | ||
| 12×1,5 | 12 | 12 | 27 | 6 | 315 | 6,3 | L |
| 12×1,5 | 12 | 12 | 27 | 6 | 315 | 6,3 | L |
| 14×1,5 | 12 | 14 | 29 | 8 | 315 | 8,5 | L |
| 14×1,5 | 12 | 14 | 29 | 8 | 315 | 8,5 | L |
| 16×1,5 | 14 | 15 | 30 | 10 | 315 | 11,5 | L |
| 16×1,5 | 14 | 15 | 30 | 10 | 315 | 11,5 | L |
| 18×1,5 | 17 | 17 | 32 | 12 | 315 | 15,0 | L |
| 18×1,5 | 17 | 17 | 32 | 12 | 315 | 15,0 | L |
| 22×1,5 | 19 | 21 | 36 | 15 | 315 | 24,5 | L |
| 22×1,5 | 19 | 21 | 36 | 15 | 315 | 24,5 | L |
| 26×1,5 | 24 | 23,5 | 40 | 18 | 315 | 35,8 | L |
| 26×1,5 | 24 | 23,5 | 40 | 18 | 315 | 35,8 | L |
| 30×2 | 27 | 27,5 | 44 | 22 | 160 | 47,9 | L |
| 30×2 | 27 | 27,5 | 44 | 22 | 160 | 47,9 | L |
| 36×2 | 36 | 30,5 | 47 | 28 | 160 | 74,5 | L |
| 36×2 | 36 | 30,5 | 47 | 28 | 160 | 74,5 | L |
| 45×2 | 41 | 34,5 | 56 | 35 | 160 | 100,0 | L |
| 45×2 | 41 | 34,5 | 56 | 35 | 160 | 100,0 | L |
| 52×2 | 50 | 40 | 63 | 42 | 160 | 150,0 | L |
| 52×2 | 50 | 40 | 63 | 42 | 160 | 150,0 | L |
| 14×1,5 | 12 | 16 | 31 | 6 | 630 | 11,0 | S |
| 14×1,5 | 12 | 16 | 31 | 6 | 630 | 11,0 | S |
| 16×1,5 | 14 | 17 | 32 | 8 | 630 | 14,2 | S |
| 16×1,5 | 14 | 17 | 32 | 8 | 630 | 14,2 | S |
| 18×1,5 | 17 | 17,5 | 34 | 10 | 630 | 19,1 | S |
| 18×1,5 | 17 | 17,5 | 34 | 10 | 630 | 19,1 | S |
| 20×1,5 | 17 | 21,5 | 38 | 12 | 630 | 24,3 | S |
| 20×1,5 | 17 | 21,5 | 38 | 12 | 630 | 24,3 | S |
| 22×1,5 | 19 | 22 | 40 | 14 | 630 | 30,2 | S |
| 22×1,5 | 19 | 22 | 40 | 14 | 630 | 30,2 | S |
| 24×1,5 | 24 | 24,5 | 43 | 16 | 400 | 39,8 | S |
| 24×1,5 | 24 | 24,5 | 43 | 16 | 400 | 39,8 | S |
| 30×2 | 27 | 26,5 | 48 | 20 | 400 | 60,0 | S |
| 30×2 | 27 | 26,5 | 48 | 20 | 400 | 60,0 | S |
| 36×2 | 36 | 30 | 54 | 25 | 400 | 112,0 | S |
| 36×2 | 36 | 30 | 54 | 25 | 400 | 112,0 | S |
| 42×2 | 41 | 35,5 | 62 | 30 | 400 | 146,0 | S |
| 42×2 | 41 | 35,5 | 62 | 30 | 400 | 146,0 | S |
| 52×2 | 50 | 41 | 72 | 38 | 315 | 206,0 | S |
| 52×2 | 50 | 41 | 72 | 38 | 315 | 206,0 | S |
Contact us to get a quick quote for your requirement.
Nadia Tube Fittings is a leading supplier and stockist of premium Hydraulic Equal Tee in Kuala lumpur, Malaysia. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.
You’ll see hydraulic equal tees used in construction machinery, agricultural equipment, oil and gas hydraulics, industrial hydraulic systems, and mobile hydraulic units. They shine when it comes to splitting or combining flow in high-pressure hydraulic circuits, ensuring even fluid distribution across multiple paths. By providing secure, leak-free connections and maintaining consistent flow, these fittings boost system efficiency, cut down on maintenance needs, and enhance operational safety. With their blend of strength, precision, and reliability, hydraulic equal tees are truly essential in today’s hydraulic systems.
