Incoloy 800 Ball Valve

Home > Incoloy > Incoloy 800 Ball Valve

The Incoloy 800 Ball Valve is a top-notch valve crafted for managing the flow of liquids and gases in tough industrial settings. Made from Incoloy 800, which is an iron-nickel-chromium alloy, this valve boasts impressive resistance to oxidation, carburization, and stress-corrosion cracking caused by chlorides, even when the heat is on. Its sturdy design guarantees reliable sealing, smooth operation, and a long lifespan in high-pressure and high-temperature situations. You’ll find Incoloy 800 ball valves commonly used in sectors like chemical processing, petrochemicals, power generation, and marine engineering, where durability and resistance to corrosion are absolutely essential.

Incoloy Alloy 800 2-Way Ball Valve Supplier in Kuala lumpur, Incoloy 800 Ball Valves Price List in George town, Incoloy 800 3-way Ball Valves Manufacturer in Malaysia, Incoloy 800 Ball Valves In Ipoh, Incoloy 800 Instrumentation Ball Valves, Incoloy 800 One-Piece Ball Valves Exporter in George town, Incoloy 800 Instrument Ball Valve Manufacturer in Kuala lumpur, Incoloy 800 Ball Valve in Kuala lumpur, Malaysia.

The alloy that makes up Incoloy 800 includes nickel, chromium, and iron, along with carefully controlled amounts of carbon, aluminum, and titanium, which together provide remarkable mechanical strength and thermal stability. This blend ensures that the valve maintains its toughness and resists deformation, even under extreme conditions. Thanks to precision machining and engineering, these valves offer tight shutoff capabilities, excellent wear resistance, and compatibility with aggressive media. Incoloy 800 ball valves are built to handle both oxidizing and reducing environments, ensuring reliable performance where standard materials might struggle.

Incoloy 800 Ball Valve Specifications

SPECIFICATION	ASTM A494 / ASME SA494 API 602, ASME B16.34, SME B16.5, ASME B16.25, ASME B1.20.1, ASME B16.11, ASME B16.10, BS 5352, DIN3352
VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Incoloy 800 Ball Valve Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60ᴬ	0.15 – 0.60ᴬ

Incoloy 800 Ball Valve Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

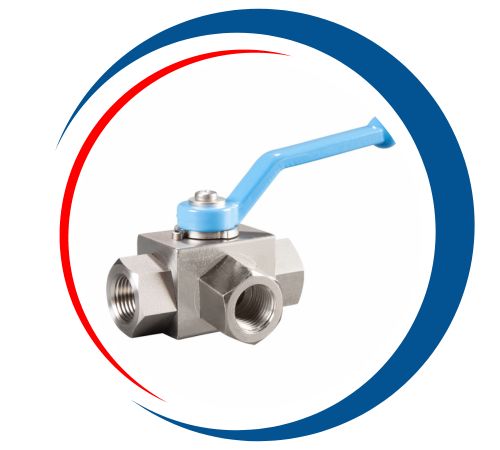

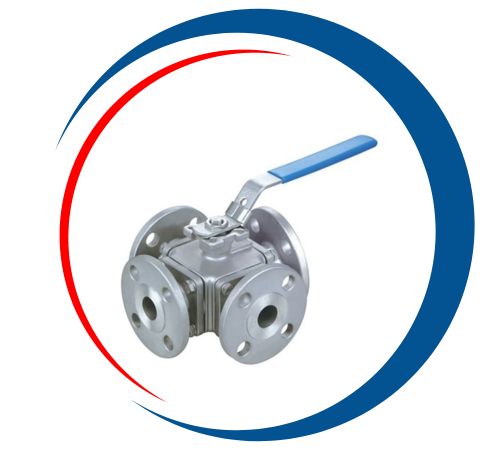

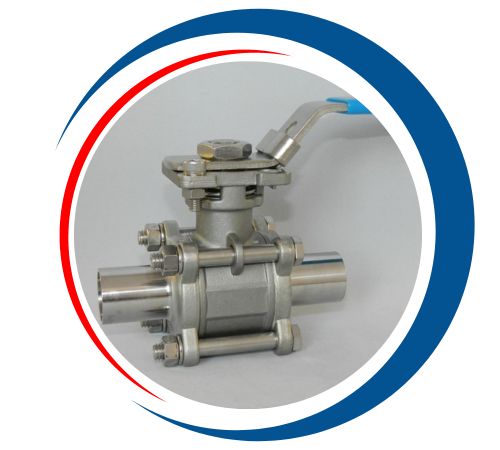

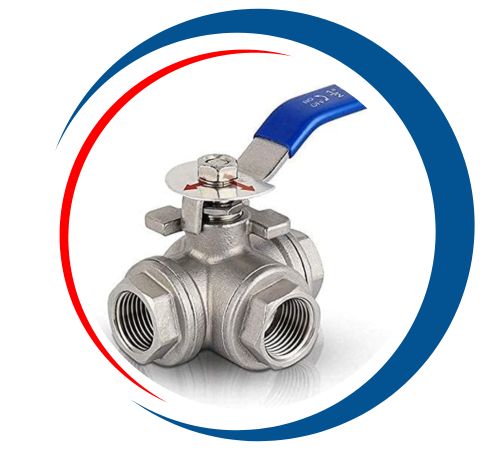

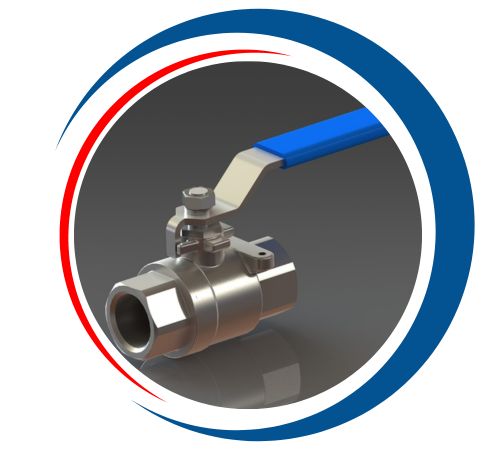

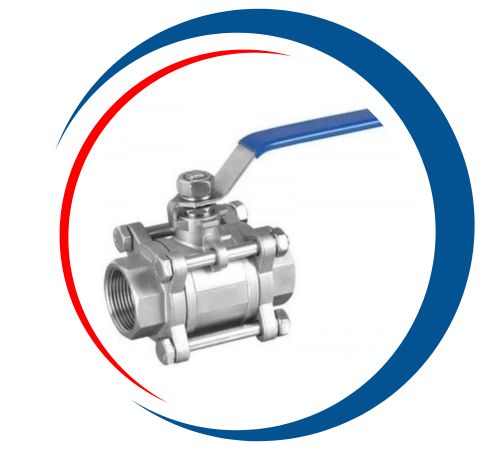

Types of Incoloy 800 Ball Valve

IIncoloy 800 Ball Valve Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T

Incoloy 800 Trunnion Ball Valve, Incoloy 800 Flanged Ball Valve, Incoloy Alloy 800 Swing Out Ball Valves Price in Kuala lumpur, UNS N08800 Instrumentation Ball Valve Supplier in George town, Incoloy 800 Lined Ball Valves Manufacturer in Malaysia, Incoloy 800 High Pressure Ball Valves Price in Ipoh, Incoloy 800 Three-piece Ball Valves Supplier And Manufacturer in Kuala lumpur, Incoloy 800 Flanged Ball Valve In Kuala lumpur, Malaysia.

Largest Manufacturer and Supplier of Incoloy 800 Ball Valve in Kuala lumpur, Malaysia

At Nadia Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Incoloy 800 Ball Valve in Kuala lumpur, Malaysia. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Malaysia, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Incoloy 800 Ball Valve Uses

You’ll see Incoloy 800 ball valves used extensively in heat exchangers, steam systems, chemical reactors, gas processing units, and offshore applications. They excel at managing high-temperature fluids, corrosive chemicals, and exposure to seawater, ensuring leak-proof operation and minimizing the risk of system failures. Their exceptional strength, resistance to scaling, and ability to perform under thermal cycling make them perfect for mission-critical operations. By providing reliability, durability, and safety, Incoloy 800 ball valves are a vital component in industries that need secure fluid control in challenging environments.
