Incoloy 825 Tube Fittings

Home > Incoloy > Incoloy 825 Tube Fittings

Incoloy 825 tube fittings are crafted from a special nickel-iron-chromium alloy, enhanced with molybdenum, copper, and titanium. This distinctive blend provides them with outstanding resistance to a variety of corrosive environments, particularly in acidic situations like sulfuric and phosphoric acids. They also stand up well against pitting, crevice corrosion, and stress corrosion cracking, making them incredibly dependable in tough service conditions.

Incoloy 825 Instrumentation Tube Fittings Supplier in Kuala lumpur, Incoloy 825 Double Ferrule Tube Fittings Price List in George town, Nickel Alloy Twin Ferrule Fittings Manufacturer in Malaysia, Incoloy 825 Single Ferrule Fittings In Ipoh, Incoloy 825 Bulkhead Union, Incoloy 825 Ferrule Fittings Exporter in George town, Incoloy 825 Instrumentation Fittings Manufacturer in Kuala lumpur, Incoloy 825 Compression Tube Fittings in Kuala lumpur, Malaysia.

These tube fittings boast excellent mechanical properties across a range of temperatures, ensuring they remain strong and durable even in demanding applications. They’re easy to fabricate and weld without compromising their corrosion-resistant features, which further enhances their reliability and longevity. Incoloy 825 tube fittings are also engineered to perform effectively in both oxidizing and reducing environments, making them adaptable for various industries.

Incoloy 825 Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 8250 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Incoloy 825 Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Al	Ti	Fe	Ni	Cr
Incoloy 825	0.10 max	0.50 max	0.50 max	0.015 max	0.40 max	0.40 max	5.0 max	58.0 min	20.0 – 23.0

Incoloy 825 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5 %

Types of Incoloy 825 Tube Fittings

Incoloy 825 Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy 825	N08825	2.4858	NC22DNB4M	NiCr22Mo9Nb	NCF 825	NA 21	ЭП703	ЭИ602

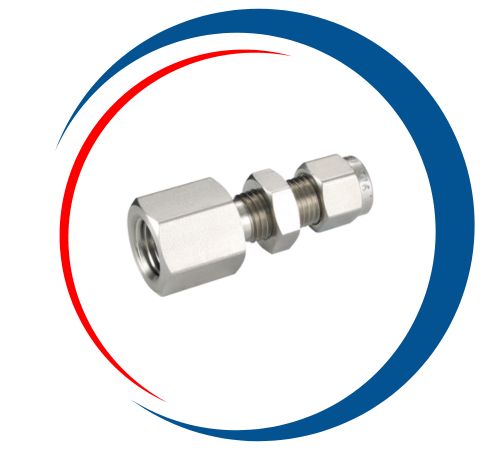

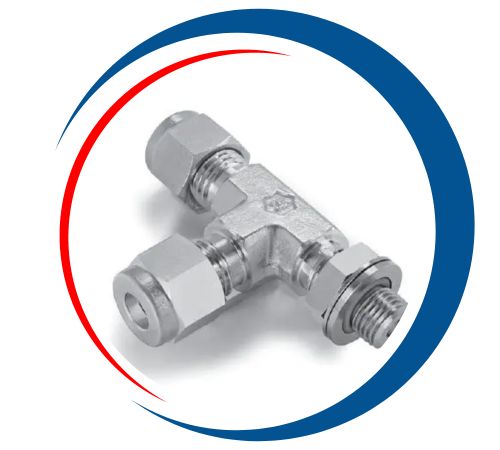

Incoloy 825 Bulkhead Union, Incoloy 825 Alloy Tube To Union, Incoloy 825 Instrumentation Tube Fittings Price in Kuala lumpur, Incoloy 825 Male Branch Tee Supplier in George town, Incoloy 825 Bulk Head Female Connector Manufacturer in Malaysia, Incoloy 825 Single Ferrule Tube Fittings Price in Ipoh, Incoloy 825 Male Run Tee Supplier And Manufacturer in Kuala lumpur, Incoloy 825 Male Elbow In Kuala lumpur, Malaysia.

Largest Manufacturer and Supplier of Incoloy 825 Tube Fittings in Kuala lumpur, Malaysia

At Nadia Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Incoloy 825 Tube Fittings in Kuala lumpur, Malaysia. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Malaysia, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Incoloy 825 Tube Fittings Uses

You’ll find Incoloy 825 tube fittings in sectors like chemical processing, oil and gas, marine, power generation, pollution control, and nuclear reprocessing. They’re commonly used in piping systems, heat exchangers, scrubbers, condensers, desalination units, and instrumentation systems that require secure and leak-proof connections in harsh conditions. Their ability to endure high pressure, temperature, and corrosive environments makes them a top choice for critical applications.
