Incoloy Tube Fittings

Home > Incoloy > Incoloy Tube Fittings

Incoloy tube fittings are expertly crafted components made from Incoloy, a robust nickel-iron-chromium alloy that also includes molybdenum, copper, and titanium. These fittings are specifically designed to withstand corrosion and thrive in high-temperature environments. They ensure secure, leak-proof connections in piping and tubing systems, maintaining their integrity even under pressure and in harsh chemical conditions. Thanks to their durable construction, they promise long-lasting performance with minimal upkeep.

Incoloy Instrumentation Tube Fittings Supplier in Kuala lumpur, Incoloy Double Ferrule Tube Fittings Price List in George town, Incoloy Back Ferrule Manufacturer in Malaysia, Incoloy Single Ferrule Fittings In Ipoh, Incoloy Bulkhead Union, Incoloy Ferrule Fittings Exporter in George town, Incoloy Instrumentation Fittings Manufacturer in Kuala lumpur, Incoloy Compression Tube Fittings in Kuala lumpur, Malaysia.

You can find Incoloy tube fittings in various types, such as compression fittings, ferrule fittings, union fittings, elbows, tees, and adapters. They accommodate different end connections like NPT, BSP, and socket weld. Installation is a breeze, and they can be welded without losing their strength or corrosion resistance throughout their lifespan. Their precise engineering guarantees proper alignment and prevents leaks, even in demanding high-pressure and high-temperature situations.

Incoloy Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 8250 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Incoloy Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Al	Ti	Fe	Ni	Cr
Incoloy Tube Fittings	0.10 max	0.50 max	0.50 max	0.015 max	0.40 max	0.40 max	5.0 max	58.0 min	20.0 – 23.0

Incoloy Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5 %

Types of Incoloy Tube Fittings

Incoloy Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy Tube Fittings	N08825	2.4858	NC22DNB4M	NiCr22Mo9Nb	NCF 825	NA 21	ЭП703	ЭИ602

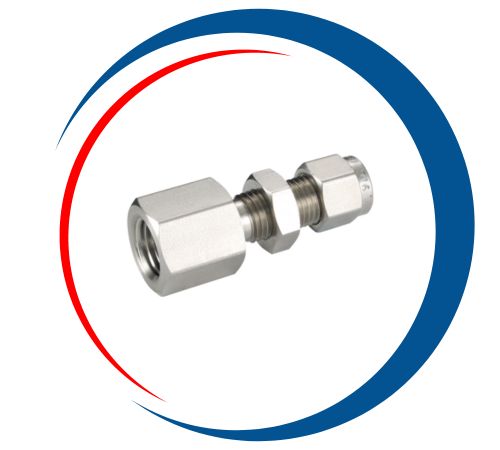

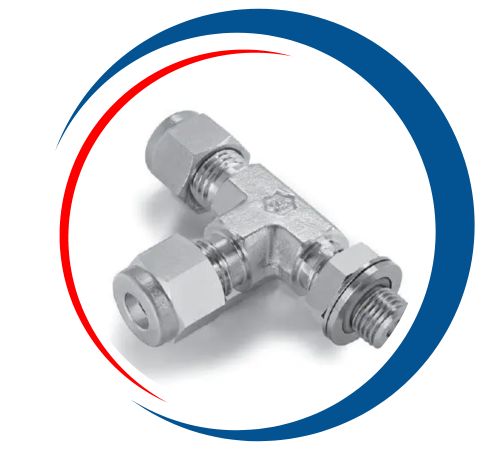

Incoloy Bulkhead Union, Incoloy Alloy Tube To Union, Incoloy Instrumentation Tube Fittings Price in Kuala lumpur, Incoloy Male Branch Tee Supplier in George town, Incoloy Bulk Head Female Connector Manufacturer in Malaysia, Incoloy Single Ferrule Tube Fittings Price in Ipoh, Incoloy Male Run Tee Supplier And Manufacturer in Kuala lumpur, Incoloy Male Elbow In Kuala lumpur, Malaysia.

Largest Manufacturer and Supplier of Incoloy Tube Fittings in Kuala lumpur, Malaysia

At Nadia Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Incoloy Tube Fittings in Kuala lumpur, Malaysia. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Malaysia, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.
