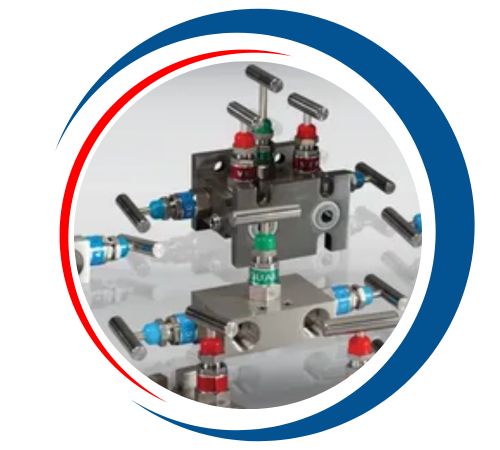

Inconel Manifold Valves

Home > Inconel >Inconel Manifold Valves

Inconel Manifold Valves are top-notch flow control devices crafted from Inconel, a superalloy made of nickel and chromium that boasts remarkable resistance to heat, oxidation, and corrosion. These valves are specifically engineered to manage, isolate, and regulate the flow of liquids and gases in critical instrumentation systems, especially in extreme operating conditions. Thanks to their ability to endure high pressures, elevated temperatures, and harsh chemical environments, Inconel manifold valves guarantee leak-proof performance, safety, and long-lasting durability. They’re the go-to choice in industries where precision and material reliability are essential for seamless operations.

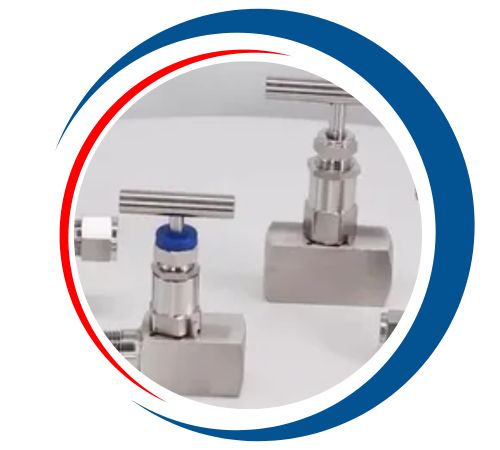

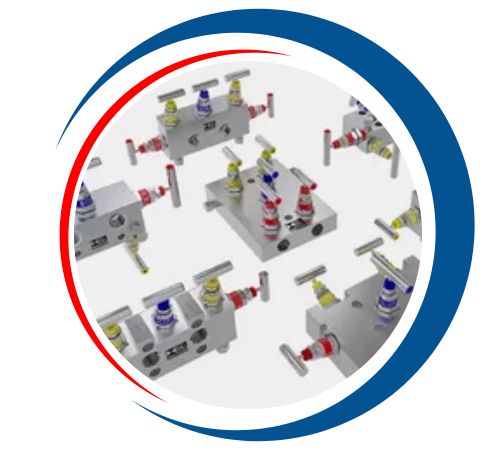

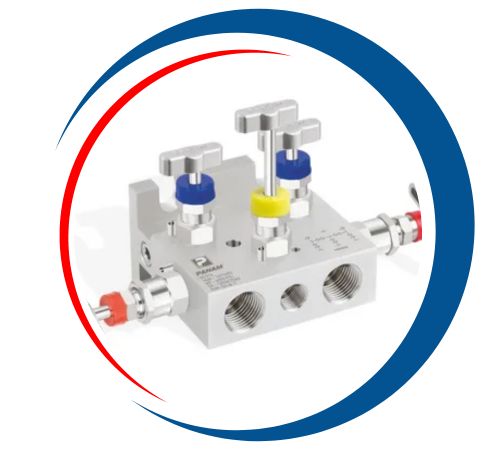

Inconel 3 Way Manifold Valves Dealer In Kuala lumpur, Inconel 2 Way Manifold Valve Exporter In Malaysia, Inconel Instrument Manifold Valves Manufacturer In George town, Incoloy Manifold Valves Supplier In Kuala lumpur, Inconel Alloy 5 Way Manifold Valves Suppliers In Malaysia, Inconel Valve Manifold Manufacturers in Kuala lumpur, Malaysia.

You can find these valves in various configurations, including 2-valve, 3-valve, and 5-valve manifolds, which are often paired with pressure gauges, transmitters, and differential pressure instruments. The Inconel material offers outstanding mechanical properties, such as high tensile strength, toughness, and resistance to stress-corrosion cracking. Precision machining ensures a tight shutoff, minimal leakage, and smooth operation, while the design facilitates easy installation and maintenance. With end connections like NPT, BSP, compression, or flanged types, they’re compatible with a wide array of instrumentation systems, providing flexibility in various applications.

Inconel Manifold Valves Specifications

BRAND NAME	TU-LOK
VALVE SIZE	1/8″ TO 1″
THREAD	NPT, BSPP, BSPT
CONNECTION	THREADED, FLANGE END
TYPE	R TYPE, T TYPE, H TYPE
FUNCTION	2 WAY, 3 WAY, 5 WAY
BODY SHAPE	SQUARE, RECTANGLE
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS	SWAGELOK, PARKER, ROSE MOUNT, HAMLET, OLIVER VALVES, HOKE
MATERIAL	INCONEL

Inconel Manifold Valve Chemical Composition

Inconel	Element (% By Mass)
Inconel	Mn	Cr	Ni	Nb	Mo	Fe	Al	Co	Si	Cu	S	Ti	C	B	P
600	1.0	14.0–17.0	72.0			6.0–10.0			0.5	0.5	0.015		0.15
617	0.5	20.0–24.0	44.2–56.0		8.0–10.0	3.0	0.8–1.5	10.0–15.0	0.5	0.5	0.015	0.6	0.15	0.006	0.015
625	0.5	20.0–23.0	58.0	3.15–4.15	8.0–10.0	5.0	0.4	1.0	0.5		0.015	0.4	0.1		0.015
690	0.35	30	59.5			9.2	0.02		0.35	0.01	0.003		0.019
718	0.35	17.0–21.0	50.0–55.0	4.75–5.5	2.8–3.3	Balance	0.65–1.15	1.0	0.35	0.2–0.8	0.015	0.3	0.08	0.006	0.015
X-750	1.0	14.0–17.0	70.0	0.7–1.2		5.0–9.0	0.4–1.0	1.0	0.5	0.5	0.01	2.25–2.75	0.08

Inconel Manifold Valve Mechanical Properties

Yield Strength 0.2% Proof (MPa) min	Tensile Strength (MPa) min	Elongation (% in 50mm) min	Hardness
			Brinell (HB) max	Rockwell B (HR B) max
Psi – 75,000 , MPa – 517	Psi – 1,35,000 , MPa -930	42.5	–	–

Top Inconel Manifold Valve Manufacturing Company in Kuala lumpur

At Bhavesh Tube Fittings, we are a leading supplier, manufacturer, and exporter of Inconel Manifold Valves in Kuala lumpur, Malaysia. Our state-of-the-art manufacturing facilities, strategically located in the Malaysia, enable us to deliver high-quality solutions that meet your specific requirements. With a comprehensive inventory of Monel materials, we are well-equipped to fulfill your needs efficiently. Our commitment to excellence and customer satisfaction ensures that we consistently maintain a ready stock of Monel Manifold Valves to support your operational demands.

Types of Inconel Manifold Valve

Inconel Manifold Valve Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.	BS	OR	JIS	AFNOR	GOST	EN
Incoloy 800H Pipe	N08810	1.4958 / 1.4876	NA 15(H)	XH32T	NCF 800H	Z8NC33-21	ЭИ670	X5NiCrAlTi31-20
Incoloy 800 Pipe	N08800	1.4876	NA 15	XH32T	NCF 800	Z8NC32-21	ЭИ670	X10NiCrAlTi32-20
Incoloy 800HT Pipe	N08811	1.4859 / 1.4876	NA 15(HT)	XH32	NCF 800HT	–	ЭИ670	X8NiCrAlTi32-21

UNS No	Grade	Old British		Euronorm		Japanese JIS	GOST
UNS No	Grade	En	BS	AFNOR	No	Japanese JIS	GOST
N06601	Inconel 601	NiCr23Fe	NA 49	NC23FeA	2.4851	NCF 601	XH60BT
N06625	Inconel 625	NiCr22Mo9Nb	NA 21	NC22DNB4M	2.4856	NCF 625	ХН75МБТЮ
N06600	Inconel 600 Pipe	NiCr15Fe	NA 13	NC15FE11M	2.4816	NCF 600	МНЖМц 28-2,5-1,5
N08825	Incoloy 825	NiCr21Mo	NA 16	NFE30C20DUM	2.4858	NCF 825	ЭП703

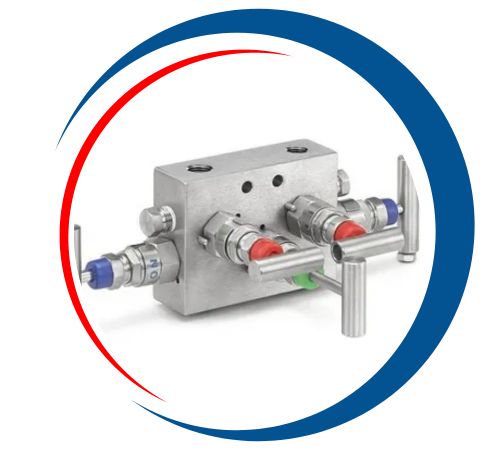

Inconel H Series Manifold Valves Dealer In Kuala lumpur, Inconel Hydraulic Manifold Exporter In Kuala lumpur, Inconel R - Type Manifold Valve Dealer In George town, Inconel Double Block Bleed Valves In Kuala lumpur, Inconel Alloy Three Way T- Type Manifold Valves George town, Inconel Block and Bleed Valves Supplier In Malaysia, Inconel Alloy Bellows Sealed Manifolds, Inconel Instrumentation Manifold Valves Manufacturer In Kuala lumpur, Malaysia.

Largest Manufacturer and Supplier of Inconel Manifold Valve in Kuala lumpur, Malaysia

Nadia Tube Fittings is a leading supplier and stockist of premium Inconel Manifold Valves in Kuala lumpur, Malaysia. Our products find extensive application across diverse industries, and we are dedicated to delivering outstanding service while ensuring high customer satisfaction. Our specialized finishing techniques distinguish us in the metal industry, enhancing the performance and durability of our valves. We are committed to consistently providing top-quality Monel Manifold Valves while effectively addressing the unique needs of our customers.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Inconel Manifold Valve Uses

Inconel manifold valves are extensively utilized in sectors like oil and gas, petrochemical, chemical processing, marine, power generation, aerospace, and offshore industries. They shine in high-temperature steam systems, corrosive chemical lines, and environments exposed to seawater or harsh gases, where stainless steel or other alloys might falter. By delivering safe isolation and precise control of pressure instruments, these valves safeguard sensitive equipment, enhance efficiency, and prolong service life. With their exceptional durability and performance, Inconel manifold valves are an essential solution for demanding flow control and instrumentation needs.
