Monel Tube Fittings

Home > Monel > Monel Tube Fittings

Monel tube fittings are top-notch components made from Monel, a nickel-copper alloy celebrated for its incredible resistance to seawater, salt, alkalis, and acidic conditions. These fittings are crafted to ensure secure, leak-proof connections in critical fluid and gas handling systems, providing durability and reliability even in the toughest environments. Thanks to their impressive mechanical strength and resistance to stress-corrosion cracking, Monel tube fittings find their place in various industries like marine engineering, oil and gas, petrochemical, power generation, and chemical processing, where long-lasting performance in corrosive settings is a must.

Monel Tube Fittings Price in Kuala lumpur, Monel Instrumentation Fittings Supplier in George town, Monel Alloy Double Ferrule Fittings Manufacturer in Malaysia, Monel Alloy Branch Tees Price in Ipoh, Monel Female Elbow Dealer in George town, Monel Hydraulic Tube Fittings Supplier in Kuala lumpur, Monel Blanking Plug Supplier And Manufacturer in Kuala lumpur, Monel Union Tee In Kuala lumpur, Malaysia.

You can find Monel tube fittings in a range of types, including compression fittings, flare fittings, and threaded fittings, with various configurations like unions, tees, elbows, crosses, adapters, and reducers. Their sturdy design allows them to withstand high pressures and temperatures, making them ideal for both offshore and onshore applications. The smooth internal surface of these fittings promotes optimal flow while reducing the chances of leakage or contamination, ensuring efficiency and safety in critical piping systems.

Monel Tube Fittings Specifications

Monel Tube Fittings specification (ASTM / ASME)	ASTM B366/ ASME SB366
Working Pressure	Up to 6,000psi (based on severity of application)
Two-Ferrule Tube Fittings	Pressure Ratings : Up to 11 000 psig (760 bar)
Medium-Pressure, Gaugeable	Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C)
High-Pressure Monel Tube Fittings	Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) Materials of construction: 316 Stainless Steel Tube Fittings, Alloy 2507, Monel 400 Tube fittings
Monel Tube Fittings Special sizes	22mm Monel tube fittings 25mm Monel 400 tube fittings 32mm Monel K500 tube fittings 50mm Monel Ferrule tube fittings
End Connections	Types: NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Types	Unions, NPT, medium-pressure cone and thread adapters, male SAE/MS, reducers, port connectors, tube adapters, caps, plugs
Monel Ferrule Tube Fittings Sizes	1/16 to 2 in.; 2 to 50 mm 1/4, 3/8, 1/2, 9/16, 3/4 in.; 6, 10, 12 mm
Specification	Items Made from Hex – ASTM B574 ; Items made from Round Bar- ASTM B564
Brand Name	Monel Tube fittings
Tube Size	1/16”OD to 2”OD, 2mm OD to 50mm OD
Threads	NPT (ANSI B1.20.1), BSP, BSPT (ISO thread configurations), UNF, SAE etc.
PTFE Standards	ASTM D1710, ASTM D3294
Applicable Temperature	150-400°C
Monel Tube Fittings Packing Details	As your detail request Normally carton size – 211614CM/312116CM/364550CM Normally wooden box size – 382717CM Normally 1piece/opp, 10-20pcs/carton

Equivalent Grades of Monel Tube Fittings

STANDARD	AFNOR	UNS	BS	WERKSTOFF NR.	GOST	JIS	EN
Monel K500	–	N05500	–	2.4375	–	–	–
Monel 400	NU-30M	N04400	NA 13	2.4360	МНЖМц 28-2,5-1,5	NW 4400	NiCu30Fe

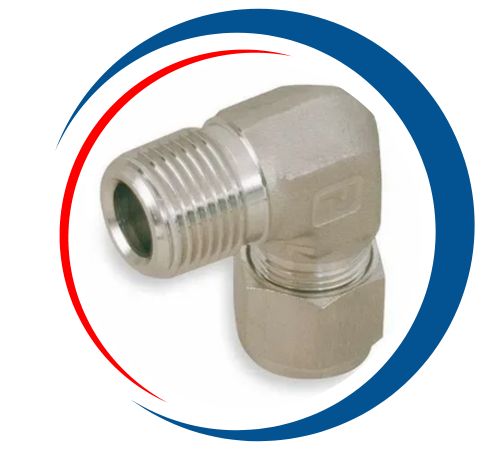

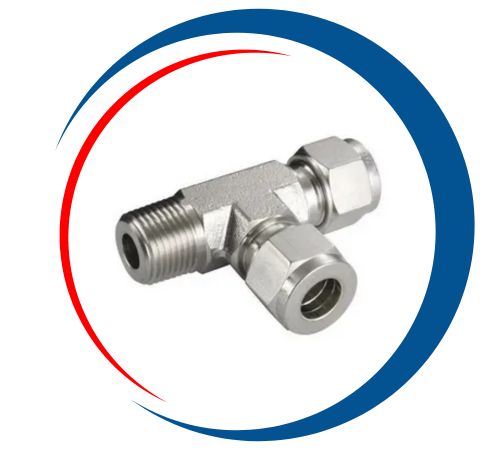

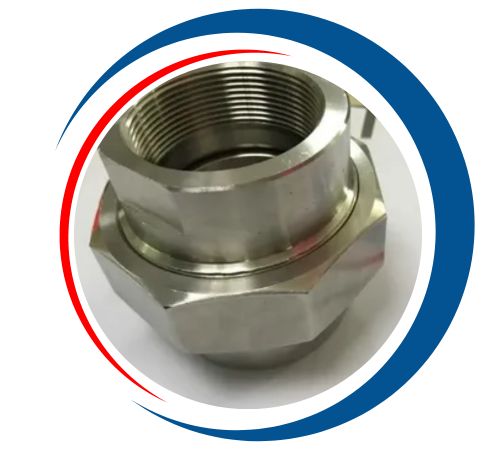

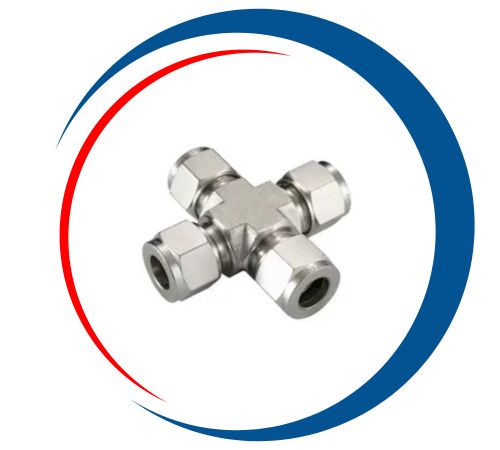

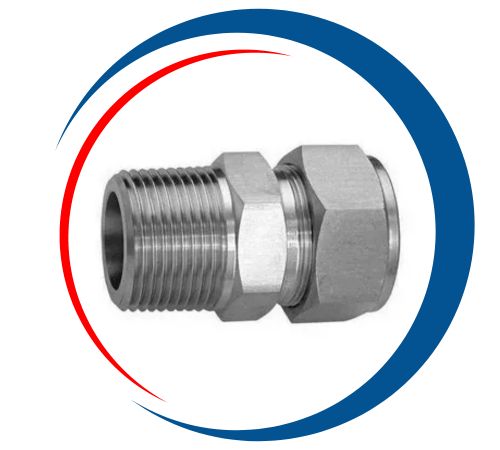

Types of Monel Tube Fittings

Dimension of Monel Tube Fittings

OD	OD Actual	Thread Designation – Nominal Size	Thread per inch
(fraction inch)	(inches)	(inches)	NPT	BSP
5/16	0.3125	1/16	27	28
13/32	0.405	1/8	27	28
35/64	0.540	1/4	18	19
43/64	0.675	3/8	18	19
27/32	0.840	1/2	14	14
1-3/64	1.050	3/4	14	14
1-5/16	1.315	1	11-1/2	11
1-21/32	1.660	1-1/4	11-1/2	11
1-29/32	1.900	1-1/2	11-1/2	11
2-3/8	2.375	2	8	11
2-7/8	2.875	2-1/2	8	11
3-1/2	3.5	3	8	11
4	4.0	3-1/2	8	11
4-1/2	4.5	4	8	11
5-5/8	5.563	5	8	11
6-5/8	6.718	6	8	11

Monel Male Bulkhead Connector Manufacturer in Kuala lumpur, Monel Hydraulic Fittings Exporter in George town, Monel Single Ferrule Compression Fittings Supplier in Malaysia, Monel Flared Tube Fittings Supplier in Ipoh, Monel Union Cross In Malaysia, Monel Instrumentation Fittings In Ipoh, Monel Bulkhead Union Price List in Kuala lumpur, Monel Ferrule Tube Fittings Manufacturer in Kuala lumpur, Monel Alloy Compression Tube Fittings Exporter in George town, Malaysia.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel Tube Fittings in Kuala lumpur, Malaysia

At Nadia Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Monel Tube Fittings in Kuala lumpur, Malaysia. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Malaysia, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Monel Tube Fittings Uses

Installing Monel tube fittings is a breeze, requiring just a few tools while delivering a strong, leak-tight seal. Their outstanding corrosion resistance, especially in marine and acidic environments, sets them apart from many other alloy fittings in terms of longevity and reliability. They are particularly well-suited for applications like seawater piping systems, chemical transfer lines, heat exchangers, and instrumentation systems. With their unique blend of strength, corrosion resistance, and durability, Monel tube fittings are essential for the smooth and safe operation of complex industrial processes.
