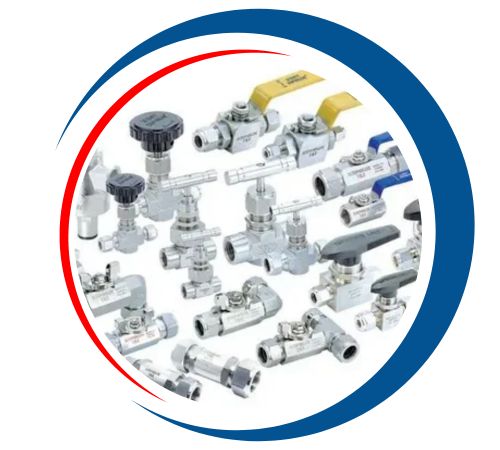

Nadia Tube Fittings stands out as a top manufacturer and supplier of Nickel Alloy Instrumentation Valves right in the heart of Kuala Lumpur, Malaysia. They specialize in delivering high-performance solutions tailored for critical industrial applications. These valves are expertly designed for precise flow control, isolation, and regulation, making them tough enough to handle highly corrosive and high-temperature environments. Crafted from premium nickel and nickel-based alloys, they boast impressive resistance to caustic solutions, neutral and alkaline salts, and reducing chemicals. You’ll find Nickel Alloy Instrumentation Valves widely utilized across various sectors in Malaysia, including petrochemical, chemical processing, marine, offshore, and power generation industries, where safety, reliability, and longevity are paramount.
These valves are primarily made from high-purity nickel (usually over 99%), with carefully controlled amounts of copper, manganese, and iron, depending on the specific grade. This unique composition grants them exceptional corrosion resistance, particularly in caustic soda, alkalis, and non-oxidizing acids. Their mechanical properties are impressive too, featuring a tensile strength of around 370–450 MPa, yield strength between 100–170 MPa, and outstanding ductility, toughness, and thermal stability. Thanks to precision machining, these valves ensure smooth stem operation, tight shutoff, and consistent performance even when temperatures and pressures fluctuate.
| STANDARD | ASTM A494 / ASME SA494 API 600/BS1414, ASME B 16.10, ASME B 16.34, API 598/BS EN 12266-1, ASME B 16.5, ASME B 16.25 |
| NICKEL VALVE SIZE RANGE | 1/8″ – 2″ (6 TO 50 mm) |
| THREAD | NPT, BSPT, JIC, BSPP, METRIC, UNF |
| CONNECTION | THREADED, BUTT WELD, TUBE END, WELD NIPPLE, SOCKET WELD, FLANGED, SAE |
| FUNCTION | 2 WAY, 3 WAY, 4 WAY, 5 WAY VALVE |
| PRESSURE RATING (PSI) |
|
| SEAL RING MATERIAL | PTFE, PEEK, DELRIN, PVDF, GRAPHITE |
| STANDARD | ISO, ANSI , API , DIN , AWWA , ASME , MSS , |
| MEDIA | HYDRAULIC OIL, SEA WATER , WATER, AIR, STEAM, GAS, COLD WATER , HOT WATER , CHEMICAL |
| MEDIA TEMPERATURE | RANGE AS PER PRESSURE (-120* C TO 500*C ) |
| BODY TYPE | BAR STOCK |
| MANUFACTURER BRAND | OS-LOK |
| PACKING DETAILS | WOODEN PALLET, BOX PACKING, CUSTOM |
| OTHER MANUFACTURERS | SWAGELOK, DK-LOK, PARKER, OLIVER VALVES, HAMLET, HOKE |
| Valve Pressure Rating (CWP) |
|
| Valve Pressure Rating (SWP) |
|
| Valve Pressure Rating (WWP) | 300 PSI / 20.7 Bar |
| End Connections |
|
| Features |
|
| Conforms to |
|
| Custom options available |
|
| Alloy | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min | – |
| 201 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
At Bhavesh Tube Fittings, we are a leading supplier, manufacturer, and exporter of Nickel Alloy Instrumentation Valves in Kuala lumpur, Malaysia. Our state-of-the-art manufacturing facilities, strategically located in the Malaysia, enable us to deliver high-quality solutions that meet your specific requirements. With a comprehensive inventory of Monel materials, we are well-equipped to fulfill your needs efficiently. Our commitment to excellence and customer satisfaction ensures that we consistently maintain a ready stock of Monel Manifold Valves to support your operational demands.
Nadia Tube Fittings is a leading supplier and stockist of premium Nickel Alloy Instrumentation Valves in Kuala lumpur, Malaysia. Our products find extensive application across diverse industries, and we are dedicated to delivering outstanding service while ensuring high customer satisfaction. Our specialized finishing techniques distinguish us in the metal industry, enhancing the performance and durability of our valves. We are committed to consistently providing top-quality Monel Manifold Valves while effectively addressing the unique needs of our customers.
Contact us to get a quick quote for your requirement.
Nickel Alloy Instrumentation Valves find their place in industries where chemical resistance and reliability are non-negotiable. In Malaysia, they’re extensively used in caustic soda production, chemical plants, marine systems, offshore oil and gas facilities, desalination units, and power generation projects. Their ability to resist corrosion in both reducing and caustic environments makes them the go-to choice for managing aggressive fluids. Plus, they’re perfect for high-purity applications and systems that require minimal contamination. With their superior material properties and robust design, Nickel Alloy Instrumentation Valves offer a reliable solution for demanding operations.
Please feel free to contact us if you need any further information or for enquiry.
