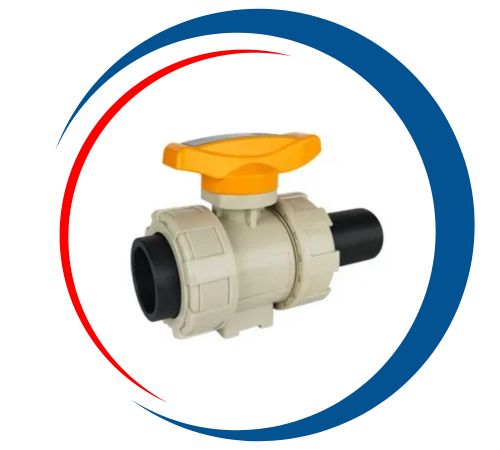

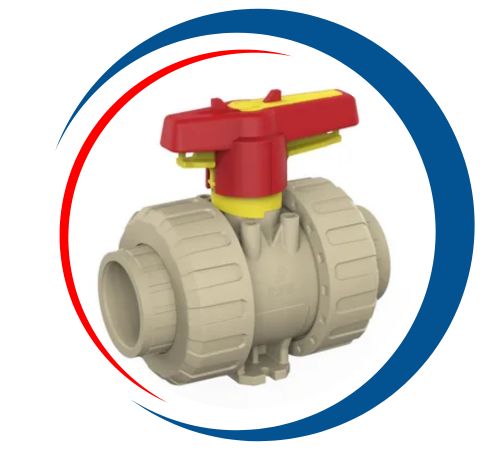

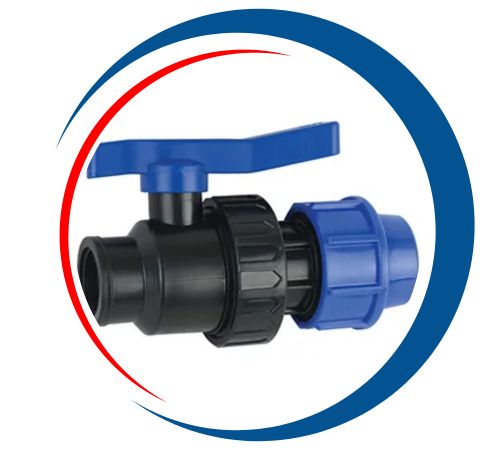

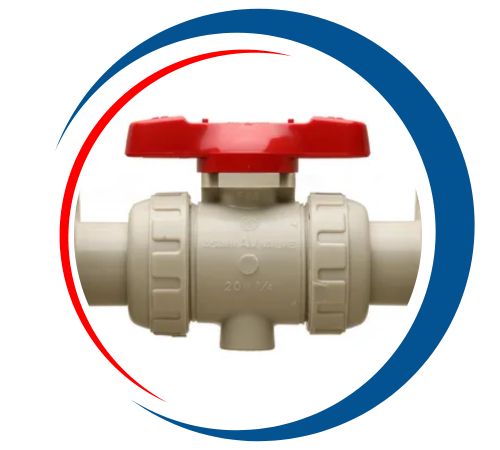

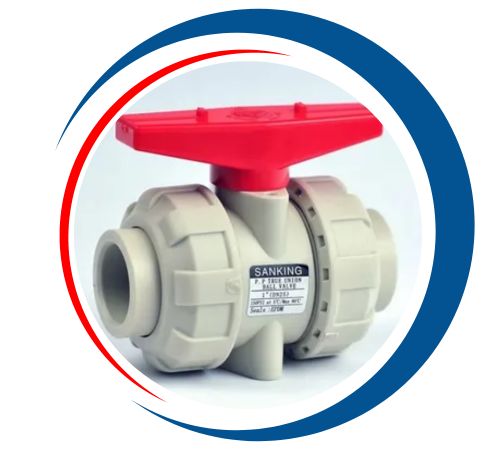

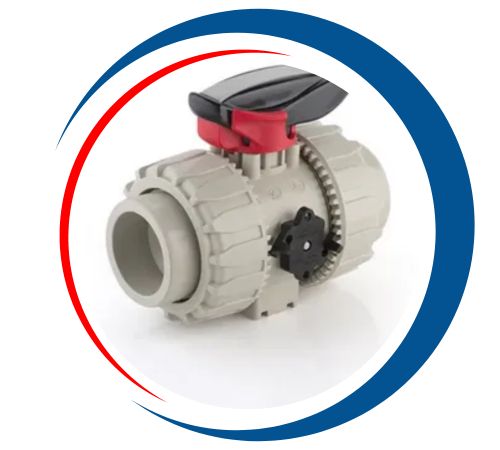

PP Ball Valve

Home > PP Ball Valve

Nadia Tube Fittings is a reputable manufacturer and supplier of PP Ball Valves based in Kuala Lumpur, Malaysia. They provide dependable and cost-effective solutions for chemical and fluid handling systems. These valves are crafted from polypropylene (PP), a lightweight and chemically resistant thermoplastic, ensuring top-notch performance even in corrosive environments. With a design that allows for quarter-turn operation, PP Ball Valves offer smooth flow control, precise shut-off, and leak-proof functionality. Nadia Tube Fittings stands by the quality of each valve, ensuring they meet international standards for durability and reliability across industrial, laboratory, and water treatment applications.

PP ball valve Manufacturer In Kuala lumpur, PP ball valve In George town, PP ball valve Malaysia, PP ball valve Ipoh. PP ball valve Jebel Ail, PP ball valve Supplier In Kuala lumpur, Malaysia.

Constructed from high-quality polypropylene, these PP Ball Valves boast outstanding chemical resistance against acids, alkalis, and a variety of aggressive fluids. The material also provides excellent mechanical properties, such as impact strength, dimensional stability, and resistance to stress cracking. Their lightweight design makes installation a breeze, and they require minimal maintenance, making them ideal for both manual and automated systems. Thanks to their sturdy construction, they guarantee leak-proof operation and reliable performance in moderate-pressure and low-temperature settings.

PP Ball Valve Specifications

Material Of Construction	Unplasticized Poly Vinyl Chloride	Construction	Multi Piece Body
Design	Single body moulded	Test pressure	07 kg./cm2
Max working temp	60 c (consistently)	Size Range	15 m to 80 mm
Connection End	Solid Plain and Ball Valve	Standard	As per requirement

PP Flange End Ball Valve Material of Construction

Material Specification
No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body”O”Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem “O” Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Polypropylene Flange End Ball Valve Dimensions

Size		L	T	OD	ID	H1	H
In.	MM
1/2″	15MM	129	12.5	100	13.5	130	69
3/4″	20MM	142	14	101	19	131	75
1″	25MM	160	20	123	24	165	89
1 1/2″	40MM	182	20	140	38	197	109
2″	50MM	208	22	165	50	200	121
2 1/2″	65MM	230	25	185	63	255	144
3″	80MM	251	25	201	75	255	150
4″	100MM	302	28	228	100	350	182
6″	150MM	428	30	300	150	–	236
8″	200MM	505	32	360	201	–	325
10″	250MM	570	34	425	242	–	310
12″	315MM	590	35	487	300	–	309

Top PP Ball Valve Manufacturing Company in Kuala lumpur

At Bhavesh Tube Fittings, we are a leading supplier, manufacturer, and exporter of PP Ball Valve in Kuala lumpur, Malaysia. Our state-of-the-art manufacturing facilities, strategically located in the Malaysia, enable us to deliver high-quality solutions that meet your specific requirements. With a comprehensive inventory of Monel materials, we are well-equipped to fulfill your needs efficiently. Our commitment to excellence and customer satisfaction ensures that we consistently maintain a ready stock of Monel Manifold Valves to support your operational demands.

Types of PP Ball Valve

PP ball valve Manufacturer In Kuala lumpur, PP ball valve In George town, PP ball valve Malaysia, PP ball valve Ipoh. PP ball valve Jebel Ail, PP ball valve Supplier In Kuala lumpur, Malaysia.

Largest Manufacturer and Supplier of PTFE Ball Valve in Kuala lumpur, Malaysia

Nadia Tube Fittings is a leading supplier and stockist of premium PTFE Ball Valve in Kuala lumpur, Malaysia. Our products find extensive application across diverse industries, and we are dedicated to delivering outstanding service while ensuring high customer satisfaction. Our specialized finishing techniques distinguish us in the metal industry, enhancing the performance and durability of our valves. We are committed to consistently providing top-quality Monel Manifold Valves while effectively addressing the unique needs of our customers.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

PTFE Ball Valve Uses

PP Ball Valves find their place in industries where chemical resistance and durability are paramount. In the chemical and petrochemical sectors, they are essential for managing corrosive fluids and solutions. Water treatment facilities depend on them for effective process control and safe fluid handling. Laboratories and research centers utilize them for precise and contamination-free flow management, while the food and beverage industry appreciates their hygienic and corrosion-resistant features. Additionally, they are used in aquaculture, pharmaceuticals, and various industrial processes, where reliable, lightweight, and low-maintenance valves are crucial for safe and efficient operations.
